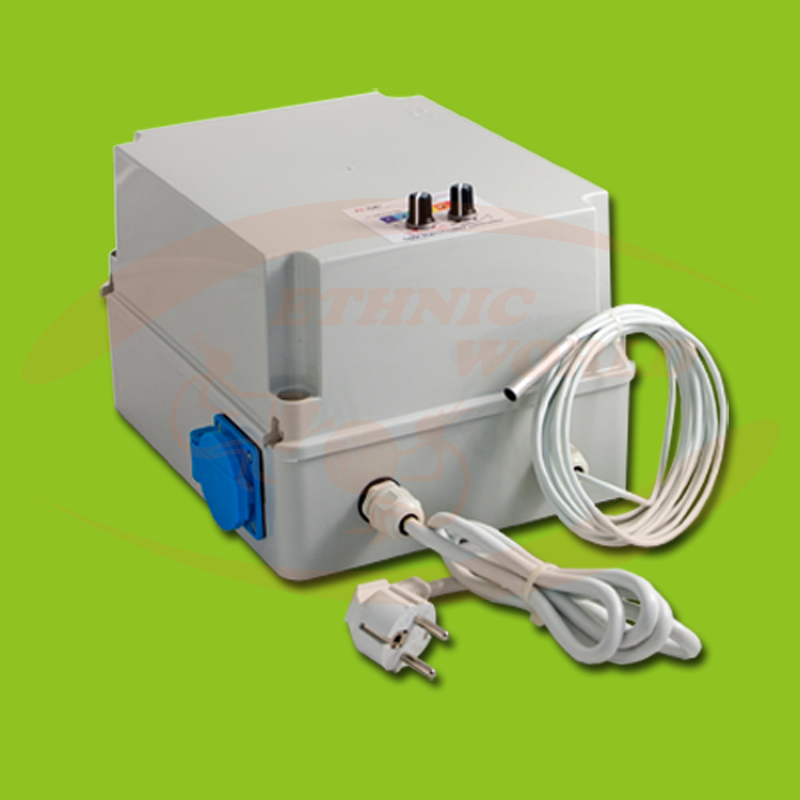

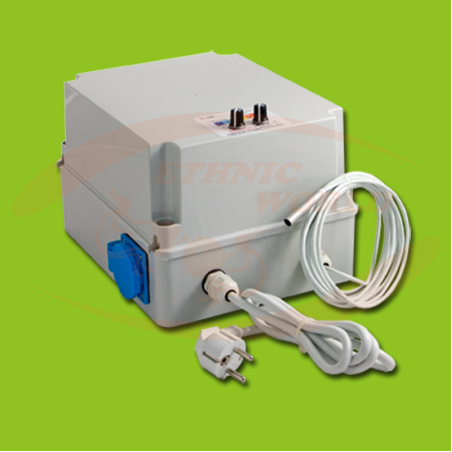

G-SE Step Transformer 2.5A

G-SE Step Transformer 2.5A

The step transformer controller have the special characteristic that the ventilators make no noise "hum" in the lower rotation. The step transformer control the fan speed from self 6-step up/down according the temperature. Temperature as Hysteresis (sensitivity) can be set on two knob's.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.

!!! SWISS PLUG !!! (Prise Suisse)

Sizes and technical data's:

• Case: WxHxD = 200x250x180mm
• Controller: WxHxD = 265x300x205mm
• Designed for: 2.5A
• Volts: 230V / 50HZ
• Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
• 0.5°C accuracy from –10°C to +85°C
• Protection class: IP44
