G-SE Temp + Speed + Hysteresis 3A

95,00 CHF
Bruttopreis

Temperature, minimum-, maximum- speed and hysteresis controller 3 Amp.

Couleurs: Unique
Tailles: 1 pc
Colisages: 1 pc
Menge

  Sichere Zahlung

Zahlung über Saferpay oder per Banküberweisung, je nach den bei der Bestellung verfügbaren Optionen.

  Lieferung in der Schweiz

Versandarten und -kosten werden vor Abschluss der Bestellung angezeigt. Kostenlose Abholung in Noville, sofern angeboten.

  Rücksendungen und Kundendienst

Bitte kontaktieren Sie uns vor jeder Rücksendung. Informationen zum Ablauf und zu Ihren Rechten finden Sie in unseren AGB.

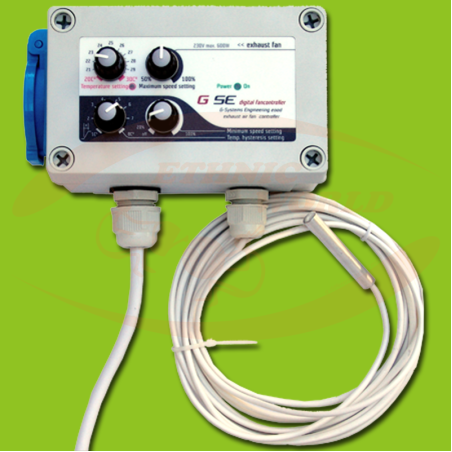

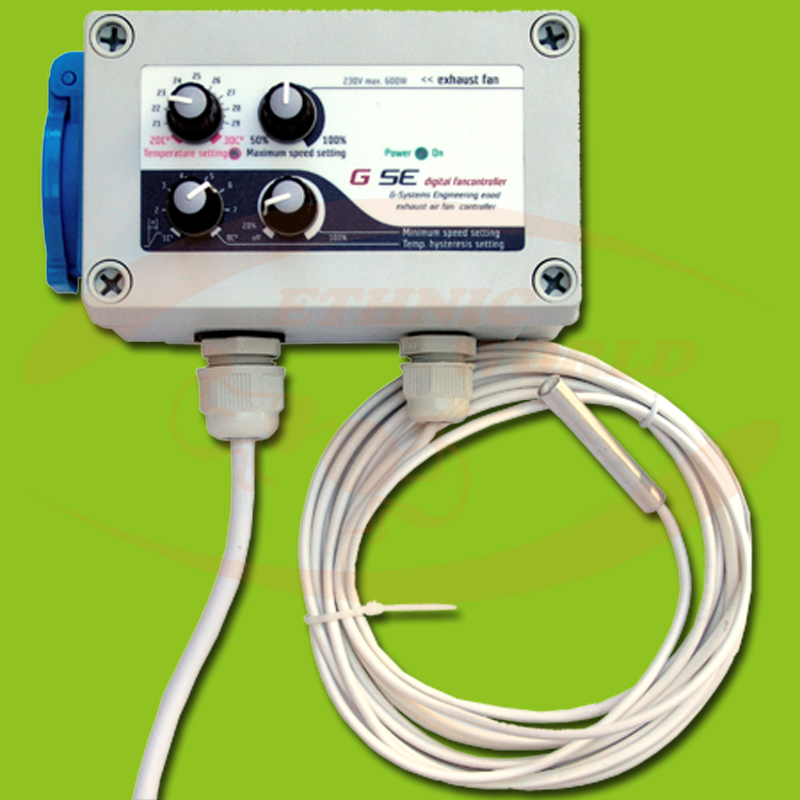

G-SE Temp + Speed + Hysteresis 3A

Temperature, minimum-, maximum- speed and hysteresis controller 3 Amp

The Temperature, minimum-, maximum- speed controller with hysteresis setting is a temperature depended speed controller for ventilated rooms with one ore more fans. The controller keeps the temperature constantly and impedes to run under the set minimum-speed, as well to run over the set maximum speed. The hysteresis defines the temperature range. It can be easily controlled, adjusting the required temperature minimum-, maximum speed and hysteresis on four knobs.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.

Sizes and technical data's:

  • Case: WxHxD = 130x80x70mm
  • Controller: WxHxD = 160x100x90mm
  • Designed for: 1x600W / TRIAC 1x16A
  • Volts: 230V / 50HZ
  • Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
  • 0.5°C accuracy from –10°C to +85°C
  • Protection class: IP44
