SJ - Charcoal Filter 100 m³/h (DF16F100)

Secret Jardin - Charcoal Filter 100 m³/h (DF16F100)

Secret Jardin Charcoal Filter Designed to clip on to the DUCTING FLANGE system.

Designed to clip on to our DUCTING FLANGE system, it takes less than 5 seconds to assemble without any tools. Use it in combination with our DF16 Extractor for optimal assembly! Our DF16 Filter are full filled with CTC80 carbon.

Reference

DF16F100

Weight

0.55kg

Dimensions

Ø15cm x 8.5cm

Carbon

• Type : CTC-80
• Diam. : 3mm
• Weight : 0.4kg

Set up

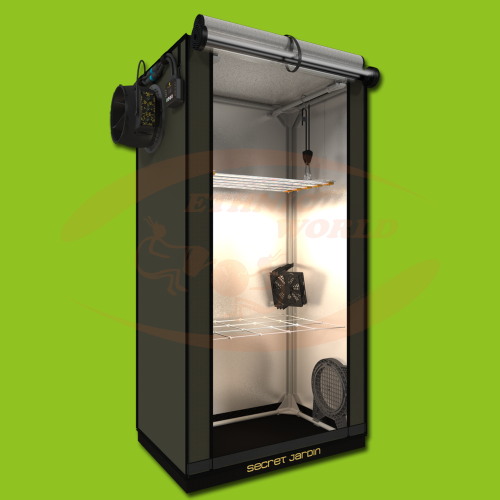

• Tent réf. : DP60
• Vol : 0.5m3
• Max Ext. : 100m3/h
• Extractor oustide ONLY

Air Flow measured *

With DF16E150 Extractor at 100m3/h potentiometer value.

Ext. alone :

• 100m3/h
• Cycle/min : 3.5

Ext + Filtre :

• 35m3/h
• Cycle/min : 1.1

Ext + Filtre + Light Baffle :

• 25m3/h
• Cycle/min : 0.8

* Cycle / min: The number of times the volume of air in the tent will be renewed per minute.
